RM Surveys delivers expert reverse engineering services across Western Australia, offering precise data to reproduce, modify, or enhance existing components and structures. Our advanced scanning technology and expertise provide accurate models or plans for everything from small machined parts and plate components to complex organic shapes and complete assembled systems. This process ensures compatibility, optimises designs, and enhances performance for improved project outcomes.

Contact our team

Reverse Engineering for High-Precision Redesign and Innovation

Talk to us about your asset

Reverse engineering is the process of capturing detailed data from existing parts, systems, or structures to enable accurate reproduction, modification, or improvement. This capability is essential in industries such as mining, construction, and manufacturing, where outdated or missing design drawings can hinder progress.

RM Surveys specialises in creating precise 3D models for a wide range of applications, including small machined components, plate parts, and complex organic shapes, as well as complete assembled systems. Our expertise supports clients in analysing, re-creating, and optimising assets to meet stringent performance, compatibility, and compliance requirements.

Talk to us about your asset

Transforming Challenges into Opportunities with Reverse Engineering

Reverse engineering unlocks new possibilities by providing accurate data for replicating, modifying, or improving existing components and systems. In manufacturing, it enables the reproduction of obsolete parts, ensuring continued operations without costly redesigns.

For mining and construction, reverse engineering delivers detailed insights to upgrade or adapt machinery and infrastructure for improved safety, efficiency, and regulatory compliance. This process also facilitates the optimisation of assets across industries, allowing seamless integration with modern technologies or enhanced designs.

RM Surveys’ reverse engineering expertise ensures precise and reliable solutions that maximise the value and performance of your assets.

Talk to our team

Reverse Engineering Projects

View all projects

1 Water Corporation Supply Tank, Dampier

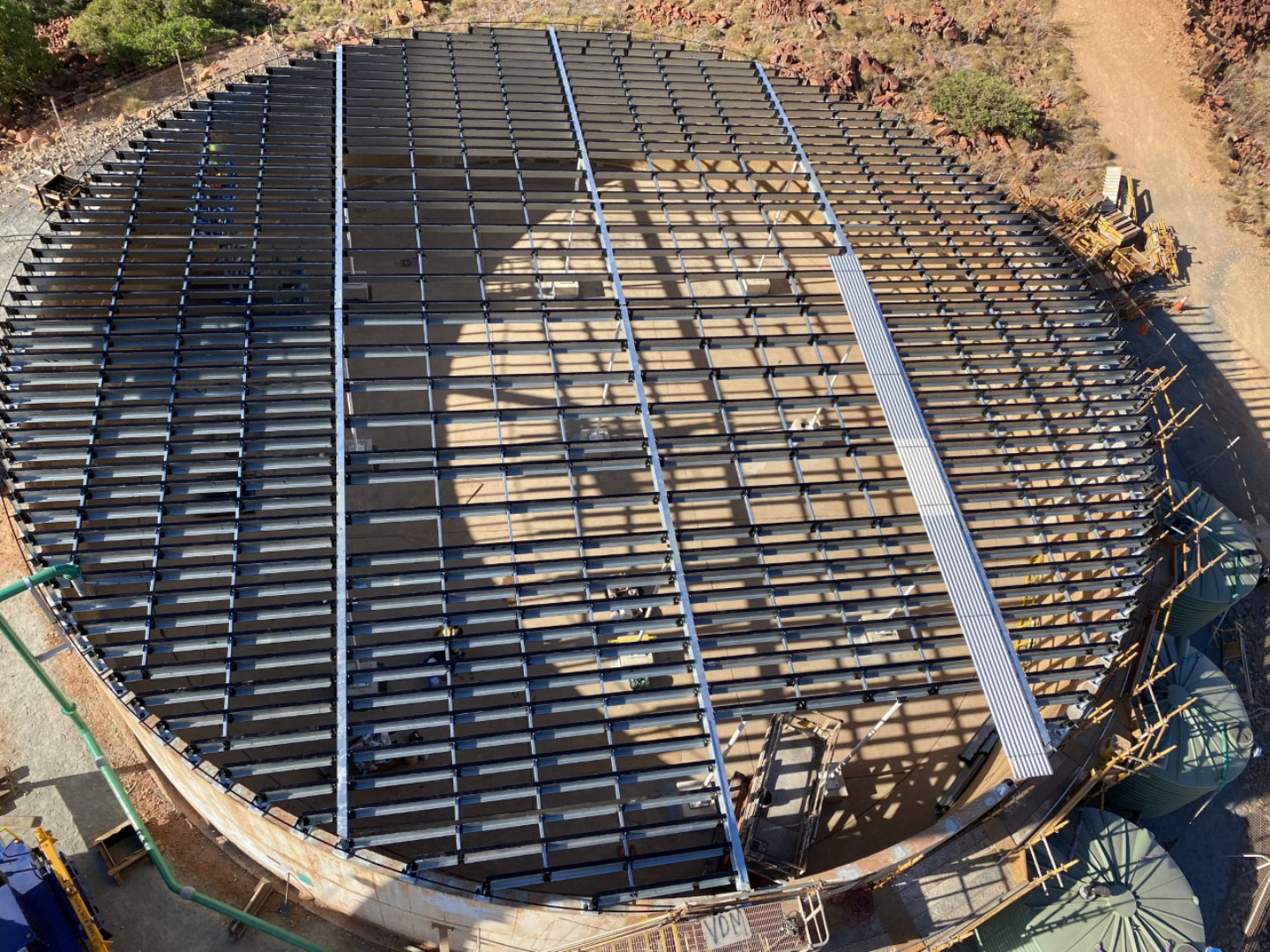

RM Surveys partnered with V&D Engineering Services to support the design and manufacture of a replacement roof for a Water Corporation supply tank in Dampier – Karratha.

Using advanced laser scanning, RM Surveys precisely captured the tank’s external dimensions and marked drill holes for hundreds of chemical bolt sets.

The accuracy of the scan ensured an exact fit, with V&D Engineering Services reporting that “all bolts literally fell into place.”

The project’s seamless installation highlights the reliability of reverse engineering in achieving precise component fit, saving time and ensuring repeatable results for future projects.

2 Optus Stadium

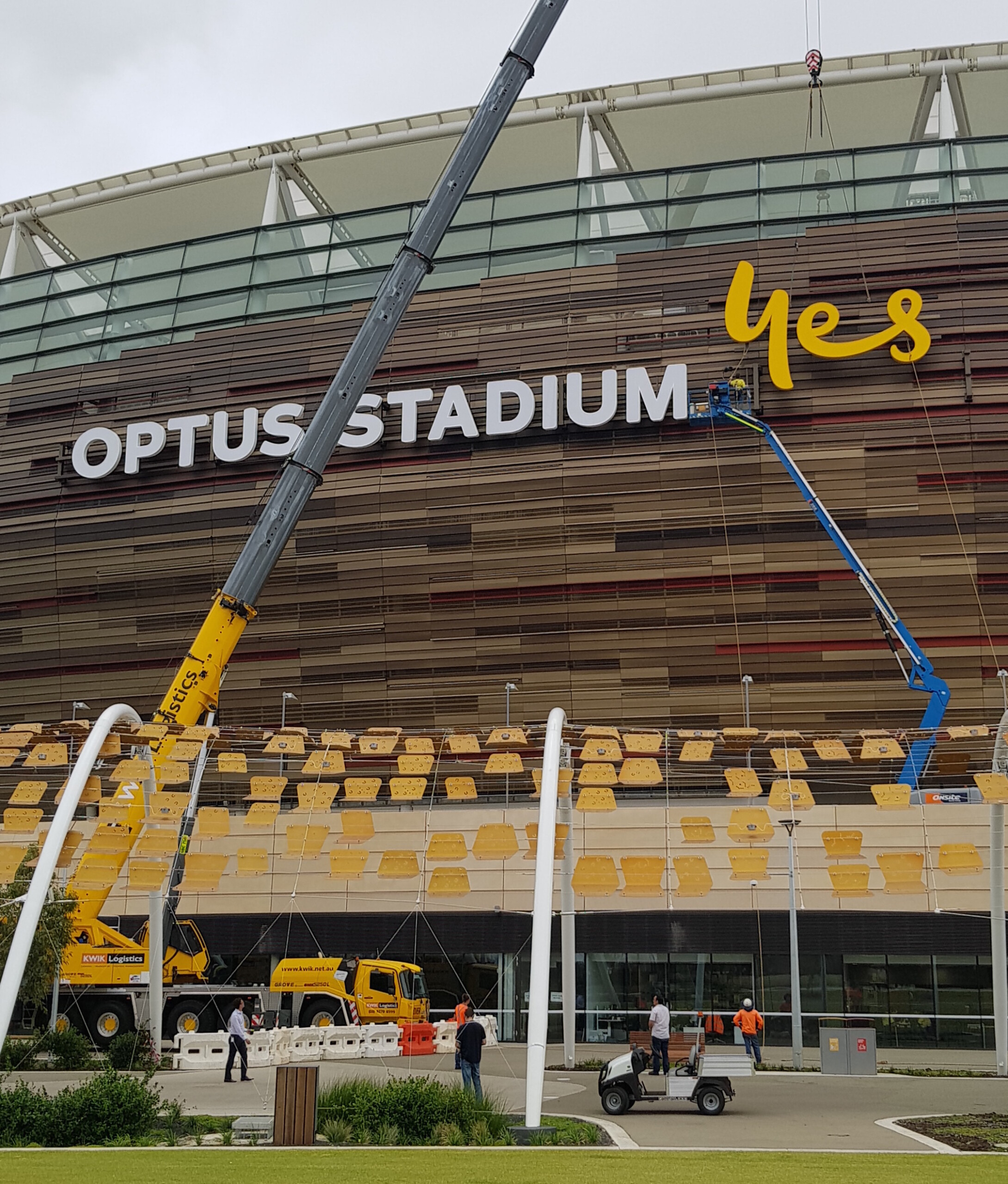

To support the installation of large Optus signs on Optus Stadium, Kingman Visual partnered with RM Surveys to ensure precise positioning and secure mounting. RM Surveys conducted a 3D laser scan of the stadium’s primary columns and facade, enabling accurate data capture to determine optimal sign placement.

This data was used to design a subframe structure tailored for the signs, ensuring stability and alignment. The project’s success demonstrates how reverse engineering aids in the flawless installation of large structures, enhancing accuracy and efficiency for complex installations.

3 Elizabeth Quay Pedestrian Bridge

RM Surveys played a key role in the precise construction of the Elizabeth Quay Pedestrian Bridge, connecting Perth City to the Swan River.

Using advanced methodologies developed by surveyor Luke Howell, RM Surveys ensured the accurate alignment and assembly of prefabricated steel components.

Their work enabled seamless installation, leading to RM Surveys’ selection for the Swan River Pedestrian Bridge project, further showcasing their expertise in complex structural projects.

4 QV1 Occulus

RM Surveys supported the QV1 redevelopment by digitally assembling the Oculus, a striking steel ring girder at the plaza’s centre.

Using advanced surveying technology, RM Surveys verified and assembled the Oculus’s four sub-assemblies virtually, eliminating the need for physical pre-assembly.

Precise adjustments were marked for machining, ensuring a perfect fit between the modules and site columns during installation.

This process streamlined assembly, enhancing accuracy and efficiency for the project’s successful completion.

Frequently Asked Questions

What is reverse engineering, and how can it benefit my project?

Reverse engineering is the process of capturing accurate data from existing parts, structures, or systems to create precise digital models for reproduction, modification, or enhancement. We specialise in this process, offering solutions that help replace obsolete components, ensure compatibility with modern systems, and optimise designs for improved functionality, performance, and compliance.

What industries can benefit from RM Surveys’ reverse engineering services?

Reverse engineering supports a variety of industries, including construction, mining, manufacturing, and infrastructure. It provides detailed insights to recreate custom components, adapt machinery to new standards, and optimise assets for greater safety and efficiency, delivering cost-effective solutions across diverse applications.

How accurate is the data captured in the reverse engineering process?

RM Surveys utilises state-of-the-art 3D laser scanning and measurement technologies to capture data with sub-millimeter accuracy. This precision ensures that recreated or modified components align seamlessly with existing systems, reducing the risk of installation issues or costly rework.

What technologies do RM Surveys use for reverse engineering?

Our team utilises advanced 3D laser scanning, digital modelling software, and world-class dimensional control practices to capture detailed geometries and measurements. These cutting-edge technologies enable the creation of accurate models and plans that meet strict industry standards for quality and compatibility.
